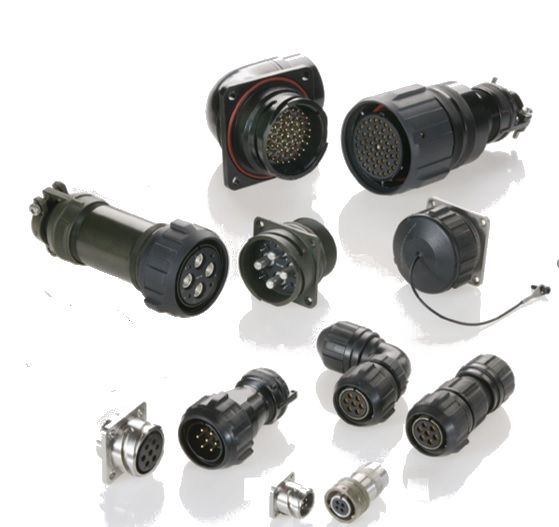

CVB Bayonet Circular Connectors

CVB series is derived from Mil C 5015 specification, which concerns the electrical connectors usually called “MS”. These connectors have been used for many industrial applications thanks to their versatility, reliability and ease of supply.
In RF CVB series, the shells of plug connectors have been rubber jacketed.

Available in 12 different shell sizes: 10SL - 12S – 14S – 16S – 16 – 18 – 20 – 22 – 24 – 28 – 32 – 36 – 40 with a wide range of back shells and strain relief options for any cable requirement.

Available in over 150 Insert arrangements (up to 201 No. of contact) with a maximum current up to 245A (operating current up to 150A).
They are manufactured with 4 synthetic, highly insulated, rubber compounds.

RF GVJ series has more robust and reliable features obtained by the following modifications: bigger shell thicknesses to guarantee resistance against impact and hars environment; five key polarization system, increased dimension to install insulators with bigger number of contacts or bigger contact size.
